Rotator Controller Az/El Deluxe – Limited Edition
$975.00

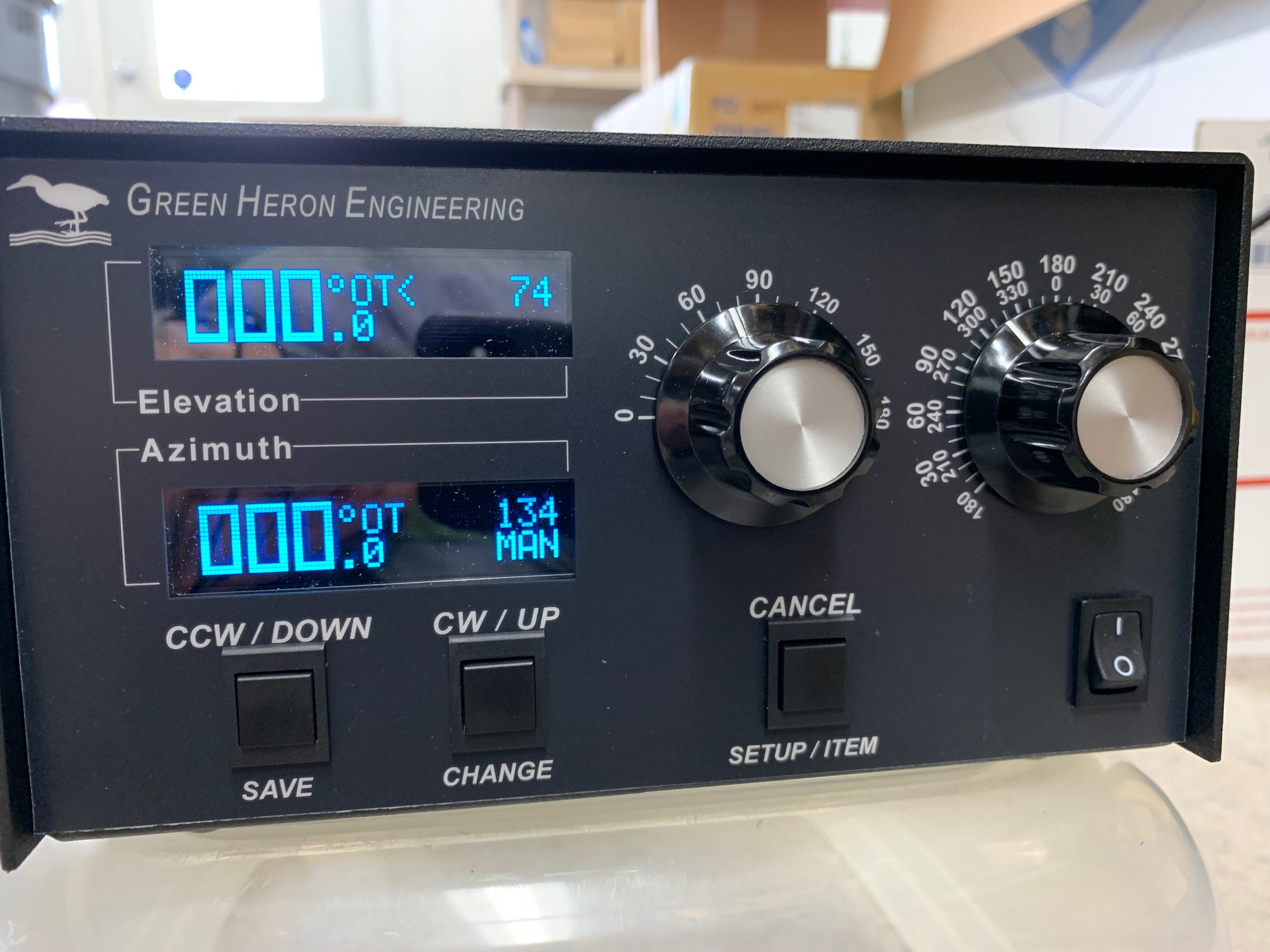

Deluxe Version – All Black/White Lettering and Blue OLED Display
The RT-21 Az-El includes many of the advanced features of our renown RT-21 controller, AND includes the ability to run both an Azimuth and an Elevation rotator all in one compact package.
Includes 2xUSB cables and printed manual. Unit is configured to order. Software and other resources available on the website.
Description
Limited Edition – All Black/White Lettering , standard Yellow OLED display
The RT-21 Az-El includes many of the advanced features of our renown RT-21 controller, AND includes the ability to run both an Azimuth and an Elevation rotator all in one compact package.
Includes 2xUSB cables and printed manual. Unit is configured to order. Software and other resources available on the website.
Additional information
| Weight | 13 lbs |
|---|---|
| Dimensions | 12 × 12 × 8 in |
| Az-El Rotator Type | Orion OR2800+MT-1000, Yaesu G-5500DC, G-5500 (Older AC), Alfa Spid, Sub-Lunar SDD3, Sub-Lunar SL-1, Other (Specify Az and El at checkout) |
| AC Mains | 115 VAC, 230 VAC (no power cable) |
Application
RT-21 Azimuth/Elevation
- Two separate control boards for independent Azimuth and Elevation
- New crisp OLED displays
- Separate Point-and-Shoot Knobs
- Free GH Tracker for automatic computer control to tenths of degrees with all common tracking programs
- RT-21 precision speed and ramping with all DC motor rotators
- Built-in AC power supply for 115/230 VAC mains
RT-21 Az-El is ideal to control your:
- M2 Orion MT-1000/3000 with OR2800 Azimuth
- Yaesu G-5500
- Alfa Spid Az/El
- Others – Ask!
[Allows different Azimuth and Elevation rotators from any manufacturer provided they both use either AC or DC motors. (Example: We can configure the Azimuth to use an OR-2800 and the Elevation to use a DC motor linear actuator. OR, the Azimuth to use a T2X, and the Elevation to use a Yaesu G-550]
More Details soon!
